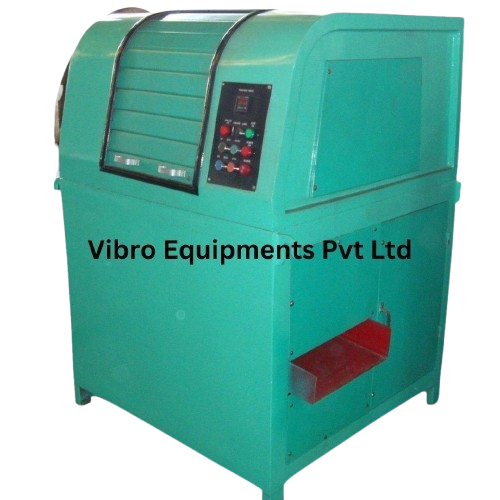

Centrifugal Finishing Machines

Centrifugal Finishing Machines are high 'G' force machines specifically developed for smaller components, and for those that require long process times in Vibratory Finishing machines. Smaller machines have removable barrels, while larger ones have fixed barrels with provision for barrel and turret inching. There are several options available - straight barrels, inclined barrels, removable barrels (for small machines), variable speeds, media parts separators, inching arrangements, rubber / polyurethane lining, conveyors, etc.

Note: We also take customized machine orders.

MODEL	Motor HP	Machine Width	Machine Length	Machine Height	Barrel PE LTR/No. of barrel
CFM-10	1.5 HP	950	1050	1160	2.5 PER LTR / 4
CFM-30	3 HP	1075	1050	1225	7.5 PER LTR / 4
CFM-40	5 HP	1090	1190	1400	10 PER LTR / 4
CFM-60	5 HP	1120	1225	1500	15 PER LTR / 4
CFM-100	10 HP	1420	1965	1800	25 PER LTR / 4

Accessories

Auto Loader

Bin type loader required for transfer of parts from customer bins into the machine. The loader can be customised for component bins used by customers. Efficient, Easy loading & unloading of parts without damage

PLC Control Panel

A full automation of the system can be done with PLC Control panel where manual intervention is not required. the panel work with touch screen or line display and has HMI with feather touch buttons.

Maanetic Separator

Generally used for Separation from media of ferrous components having similar size. These can be separated magnetically. Magnetic separator can have a inbuilt demagnetiser and in some cases can be used to convey components to the next machine / dryer.
