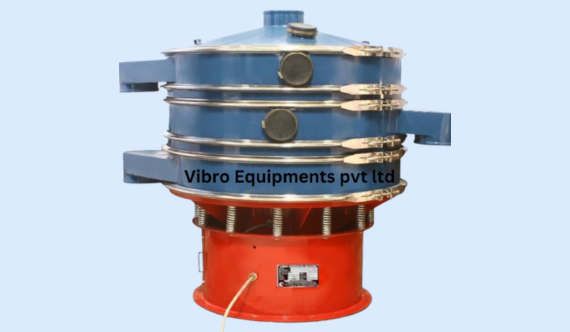

"VIBRO SCRENING MACHINE" A circular machine fitted with special designed maintenance free vibratory motor in the center of the machine. the motor has extended shaft both the end fitted with eccentric weights, which creates threedimensional mechanical vibration. "VIBRO SCREENING MACHINE" has interchangeable spacer frame with discharge spout and steardy mesh frame with suitable wire mesh, which is fitted by special clamp. "VIBRO SCREENING MACHINE" the coplete solution for any type of wet & dry screening appliction.
| MODEL | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | MOTOR H.P |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S-600 (24") | 387 | 501 | 616 | 730 | 845 | 635 | 749 | 863 | 978 | 114 | 305 | 451 | 501 | 622 | 152 | 400 | 0.25 |
| S-750 (30") | 387 | 501 | 616 | 730 | 845 | 635 | 749 | 863 | 978 | 114 | 305 | 559 | 635 | 762 | 152 | 490 | 0.5 |
| S-900 (36") | 422 | 587 | 701 | 885 | 929 | 724 | 838 | 952 | 1066 | 140 | 280 | 574 | 680 | 925 | 152 | 571 | 0.5 |
| S-1200 (48") | 565 | 711 | 882 | 1045 | 1225 | 901 | 1073 | 1245 | 1416 | 209 | 381 | 831 | 921 | 1206 | 203 | 743 | 1.5 |
| S-1500 (60") | 565 | 775 | 984 | 1194 | 1403 | 1016 | 1225 | 1435 | 1645 | 171 | 381 | 1010 | 1118 | 1524 | 203 | 914 | 1.5 |
| S-1800 (72") | 568 | 816 | 1063 | 1311 | 1559 | 1083 | 1330 | 1570 | 1825 | 190 | 279 | 1168 | 1264 | 1803 | 203 | 1035 | 3 |
| S-2100 (84") | 749 | 1084 | 1402 | 1719 | 2037 | 1409 | 1727 | 2045 | 1977 | 250 | 460 | 1498 | 1598 | 2121 | 250 | 1226 | 3 |
| S-2500 (100") | 755 | 1238 | 1554 | 1870 | 2186 | 1580 | 1896 | 2212 | 2528 | 250 | 460 | 1688 | 1796 | 2381 | 250 | 1403 | 5 |
